The story of a re-tested Apollo Guidance Computer module is a fascinating glimpse into the meticulousness of space exploration and the challenges of preserving history. Mike Stewart's discovery of a module with a 'Scrapped Module' stamp sparked curiosity about its failure during certification testing. The module, originally destined for the Apollo Guidance Computer, was a Raytheon-manufactured marvel from the 1960s, requiring rigorous acceptance testing to ensure mission safety. The acceptance documents, available online, reveal expected measurements, schematics, and mechanical drawings, offering a window into the module's design and specifications. However, the lack of recorded reasons for rejection adds a layer of mystery, prompting the need for replication of the failing test results.
The testing procedure, while complex, was chosen to be conservative, avoiding potential damage to the historical artifact. It involved extreme temperature and voltage conditions, vibration tolerance, and more, all of which are challenging to replicate without risk. The video highlights a common issue: modules were sometimes rejected due to mishandling, like being dropped. When faulty, they were opened for diagnosis, and the module in question showed suspicious marks in the potting compound, suggesting previous access and potential repair. This led to the 'For engineering use only' label, indicating its non-flight status.

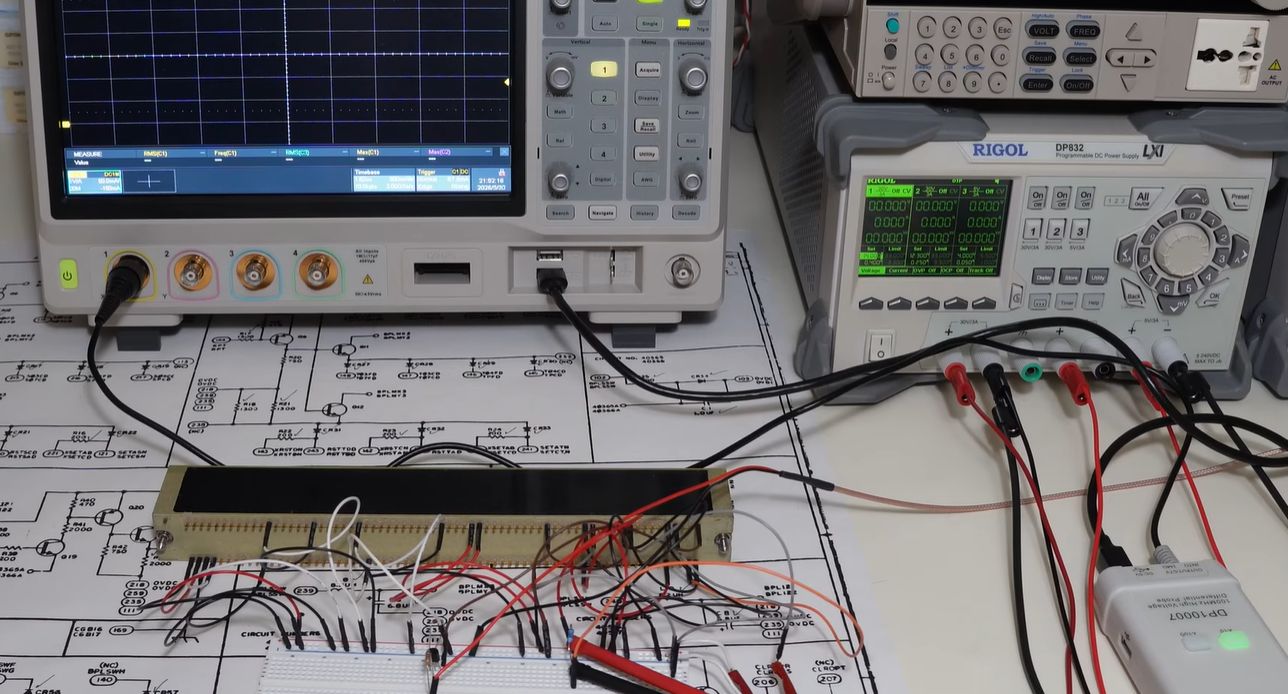

Mapping these marks to the schematics provided valuable insights into the module's history. Basic testing, following the acceptance testing document, revealed an error in the document itself: a pin number mix-up. This mistake, though seemingly minor, underscores the importance of meticulous documentation in space exploration. After stationary, room-temperature testing, the module passed, suggesting it was a repaired engineering unit rather than a flight-ready one. The only issue found was calibration issues, leaving the question of whether this was an original flaw or age-related.
This re-testing is a crucial step in documenting space history, as many details of these original modules and technologies have been lost or obscured over time. It highlights the challenges of preserving space exploration's legacy and the importance of thorough documentation. The process, while complex and conservative, is a testament to the dedication of those who strive to understand and learn from the past, ensuring that the mysteries of space exploration continue to inspire and educate for generations to come.
